1.54 Inch 350nits Square TFT LCD Module 240x240 with Capacitive Touch Panel
Discover the superior performance of our PCAP Touch Display, specifically designed for a wide range of industrial, consumer, and embedded system applications. This 1.54 inch TFT LCD PCAP Touch Display combines high-definition performance with a robust, user-friendly interface, offering a seamless touch experience with exceptional color accuracy and durability.
Key Features of this PCAP Touch Display:
- 1.54 Inch TFT-LCD Display: with 240x240 resolution, our PCAP Touch Display delivers crisp, clear images and vibrant color reproduction for professional applications.
- PCAP (Projected Capacitive) Touch Technology: Ensure fast, accurate, and reliable touch response with multi-touch capabilities, perfect for industrial control systems, POS devices, and more.
- LED Backlighting: Featuring energy-efficient LED backlighting that provides superior brightness (280 cd/m² minimum) and optimal visibility in various lighting conditions.
- Durable & Reliable: Designed for demanding environments, this PCAP Touch Display operates in temperatures ranging from -20°C to +70°C and has a high level of reliability, even under extreme conditions.
Applications:
This 1.54-inch TFT LCD module is widely used in:
- Industrial Control Systems: Use our PCAP Touch Display to create efficient, user-friendly control panels for factory automation and machinery.
- Embedded Systems: Ideal for embedded systems that require compact, high-performance displays with responsive touch input.
- Point of Sale (POS) Systems: Enhance your customer experience with a responsive PCAP Touch Display that delivers smooth, reliable touch functionality.
- Consumer Electronics: Integrate into consumer devices for a high-quality, interactive display solution that meets modern standards.
Product Specification
| Item Name | ZH015PISS001-01A |
| Screen Size | 1.54 Inch |
| Resolution | 240x240 |
| Brightness | 350 cd/㎡ (Typ.) |
| Interface | SPI, 10pins |
| Active Aera | 27.72(W)x27.72(H) mm |
| Outline Dimension | 37.95(W)x44.85(H)x2.98(T) mm |
| Lifetime | 30000(Hrs.) |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Touch Panel | Optional Capacitive Touch Screen |
| CTP View Area | 28.32(W)x28.32(H) mm |
| Touch IC | CST816D |
| Transparency / Surface Hardness | ≥83% / 6H |
| Touch / Interface | I2C 6pins , 5 points |

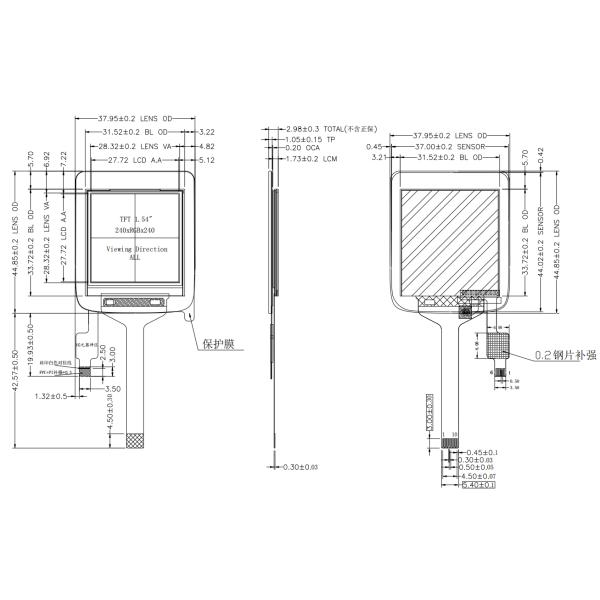

Product Drawing
Why Choose ZhanHui PCAP Touch Display?
- Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
- A powerful engineering support team offers a one-stop integrated solution
- Flexible and efficient customization capabilities, with rapid response to demands
- Strict quality control system (such as through IATF 16949, ISO 9001)
- Global logistics and localized service support
- Highly competitive cost-effectiveness
FAQ
Q1: Can this 1.54 inch TFT LCD module be customized?
Yes, we support brightness adjustment, FPC layout changes, CTP customization, and cover lens printing.
Q2: Is the capacitive touch panel optional?
Yes, you can choose display-only or display + CTP depending on your project requirements.
Q3: What interface does the touch panel use?
The capacitive touch panel uses an I2C interface with CST816D IC.
Q4: Can this display work in outdoor environments?
Yes. With wide temperature support and 350nits brightness, it’s suitable for indoor/outdoor use.
Order Your PCAP Touch Display Today!
Ensure your next project or product benefits from the advanced capabilities of our PCAP Touch Display. Whether you're developing a new industrial system or enhancing a consumer product, this display module delivers exceptional touch performance, superior image quality, and long-lasting reliability.
